Thread: Guides }- How to make Bootable SPD Flashing Cables..!

  1. #1
    Supreme Moderator Habeeb Kambrath's Avatar
    Join Date
    Apr 2016
    Location
    Kottakkal,Kerala-India
    Posts
    8,008
    Thanks Meter: 8,570

    Guides }- How to make Bootable SPD Flashing Cables..!

    Many Members asking Not Connect SPD Handsets tO PC In flash Mode,Here Is the solution For that,
    Here is the different Types Of SPD Flashing Cables For GsmDevelopers Members


    You Can Flash SPD Handsets in different 3Type Cables.




    • First Methode Is normel,You can flash With Normel Usb Cable.No Need any modification in cable

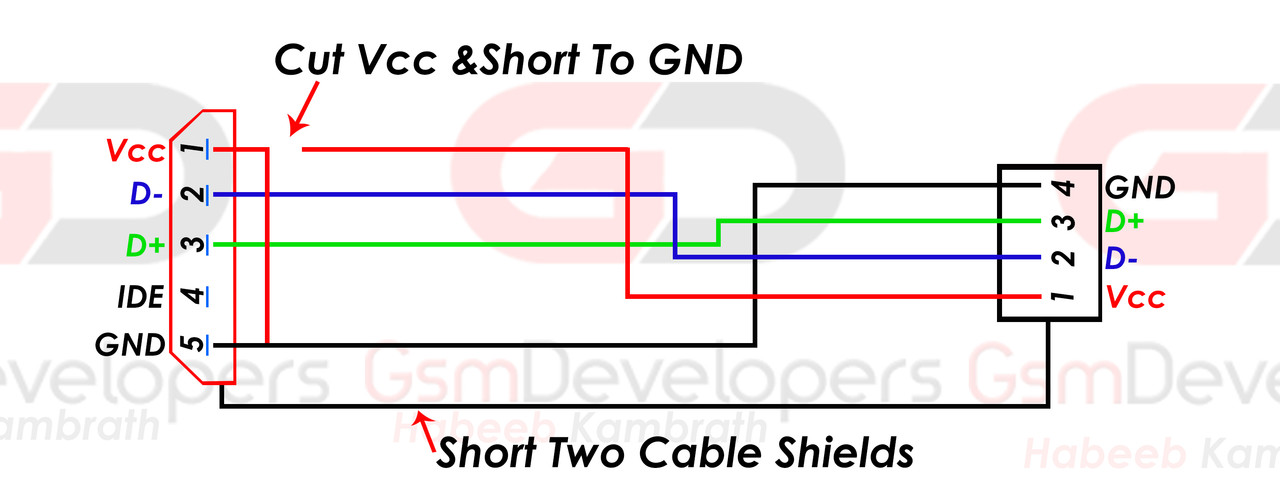

    • If not connect in Normal USB;You want to create/Modify The Usb Cable,there are two conditions,First you want to check your handset USB jack connections,If 4th connection is No connection you want to Modify the usb cable Like Picture A,If 4th Connection Is vbat You want to Modify the USB Cable like picture B.




    PICTURE (A)






    PICTURE (B)

    Note: Don't Connect 2nd Cable(Pic B) In 3rd Type Cable (Pic B)Handsets,it's Short Your Handset,



    › See More: Guides }- How to make Bootable SPD Flashing Cables..!
    Last edited by Habeeb Kambrath; 10-10-2018 at 08:42 PM.
    Best Regards,
    Habeeb Kambrath


    RockChips Factory Tool V5.0 }-  Modify/Editing Firmware...!-azimbahars-paypal-gif


  2. #2
    Junior Member
    Join Date
    Jul 2017
    Location
    Philippine
    Posts
    3
    Thanked 1 Time in 1 Post
    Tested diagram for spd no boot mode option.

  3. The Following User Says Thank You to AGS For This Useful Post:


  4. #3
    Junior Member faizanchauhan's Avatar
    Join Date
    May 2016
    Posts
    23
    Thanks Meter: 3
    Confusions! Any other Easy Way to make this SpD boot Cable?

    -Marhaba Mobile's-
    - Marhaba Mobile's -
    Software & Hardware Specialist!
    Karachi,Pakistan

  5. #4
    Supreme Moderator Habeeb Kambrath's Avatar
    Join Date
    Apr 2016
    Location
    Kottakkal,Kerala-India
    Posts
    8,008
    Thanks Meter: 8,570
    Quote Originally Posted by faizanchauhan View Post
    Confusions! Any other Easy Way to make this SpD boot Cable?

    -Marhaba Mobile's-
    confusion? what confusion here?it's clear

    buy redymade cable from market :0
    Best Regards,
    Habeeb Kambrath


    RockChips Factory Tool V5.0 }-  Modify/Editing Firmware...!-azimbahars-paypal-gif

  6. #5
    Junior Member faizanchauhan's Avatar
    Join Date
    May 2016
    Posts
    23
    Thanks Meter: 3
    Quote Originally Posted by Habeeb Kambrath View Post
    confusion? what confusion here?it's clear

    buy redymade cable from market :0
    Okay Bro!

    -Marhaba Mobile's-
    - Marhaba Mobile's -
    Software & Hardware Specialist!
    Karachi,Pakistan

  7. #6
    Junior Member
    Join Date
    Oct 2018
    Posts
    1
    Thanks Meter: 0
    cant see pics ,, why ??

  8. #7
    Supreme Moderator Habeeb Kambrath's Avatar
    Join Date
    Apr 2016
    Location
    Kottakkal,Kerala-India
    Posts
    8,008
    Thanks Meter: 8,570
    Quote Originally Posted by udgzwalle View Post
    cant see pics ,, why ??
    updated
    Best Regards,
    Habeeb Kambrath


    RockChips Factory Tool V5.0 }-  Modify/Editing Firmware...!-azimbahars-paypal-gif

  9. The Following User Says Thank You to Habeeb Kambrath For This Useful Post:


  10. #8
    Senior Member S.K SARSOD's Avatar
    Join Date
    Jun 2016
    Location
    hissar haryana
    Posts
    755
    Thanks Meter: 628
    sir plz update image
    Always Follow Gsmdevelopers RulesS.k sarsod
